| Product Form |

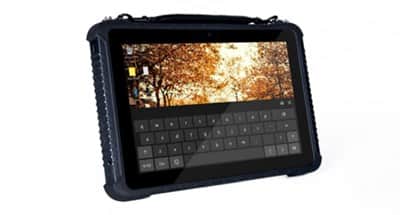

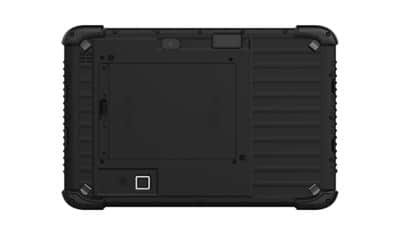

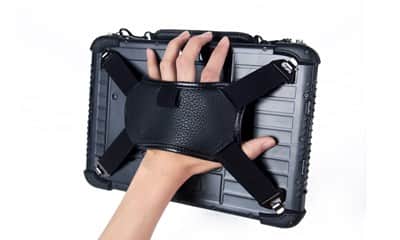

Rugged Tablet |
| 280*187*22mm |
Device unit: 1014g
Unit with giftbox and standard accessories:1990g
Docking：290g，5000mAh battery：250g |
| Black（Front and Rear Panel: Black，Decorate Board:Black） |
| LCD |
10.1 inch 16:10 |
| 1200×1920 IPS |
| 300 cd/m2 |
| TP |
10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch，TP thickness：1.1mm，COF |
| Camera |
Front:2.0MP with chargeing indicator light |
| Rear: 8.0MP USB Camera |
| Speaker |
Embedded 8Ω/0.8W waterproof speaker x 1 |
| Mic |
Sensitivity:-42db, Output resistance:2.2kΩ |
| Battery |
Lithium-ion polymer battery , pluggable, dimension: 121.8*92.3*9.5mm |
| 7.4V/5000mAh |
| 6hrs(default 50% volumn，default200nit，play 1080P HD video) |
| CPU |
Intel®kabylake Core™ m3-7Y30 |
| 4M Cache, 2.60 GHz |
| GPU |
Intel® HD Graphics 515 |
| RAM |
4GB/8GB |
| SSD |
128GB/256GB |
| E-companss sensor |
E-compass sensor |
| Gyroscope |
Gyroscope |
| G_sensor |
Gravity acceleration sensor |
| WIFI |
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G Dual band WIFI |
| Bluetooth |
BT4.2 (BLE) class 1 Transmission Distance：10m |
| 3G |
Support |
| 4G |
Support |
| GPS |
Support |
| Fingerprint |
070-Hello (FPC1020 sensor, capacitive press type) |
FPC1020(sensor，Compression type of capacitance)
Fingerprint acquisition area：10mm x10mm Resolution：192x192pixel/508DPI |
| 1D Barcode scanner |
MOTO SE655E100R |
| Optical Position:5mil |
| Scan speed: 50/s |
| Symbol System:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39,Code 32,Code 93 ,Code 11 |
| 2D Barcode Scanner |
Honeywell N3680 Hardware decoder |
| Optical Position:5mil |
| Scan speed:50/s |
Symbol System:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
| TF Slot |
Support TF x1 max：128G |
| SIM Slot |
SIM x1 |
| Micr usb |
USB 2.0*1 |
| type A usb |
USB3.0*1 |
| DC Jack |
DC 12V 4A ∮4.0mm Power connector x1 |
| Earphone Jack |
∮3.5mm Standard Earphone Jack x1 |
| HDMI Jack |
HDMI 1.4a Type C x1 |
| Extensive Slot |
12pin Pogo Pin x1 |
| DB9 PORT |
*1 (RS232) TTL Electrical Level |
| RJ45 PORT |
*1(10/100M Self-adaption) |
| OTG Cable |
USB OTG to MICRO USB cable, length:45mm |
| USB Cable |
USB to micro 5P L=1.2M 4 core aluminum foil shield cable |
