Technical parameter
Electric current: AC85V~264V/50-60HZ
Power:<20W, low consume, low radiation
Workplace environment: -20℃~+45℃
Standard: ISO, CE
Outer size: 2230*835*580mm
Inner size: 1900*700*500mm
Panel Material: ABS
Net weight: 35 Kgs
Characteristic & Function:

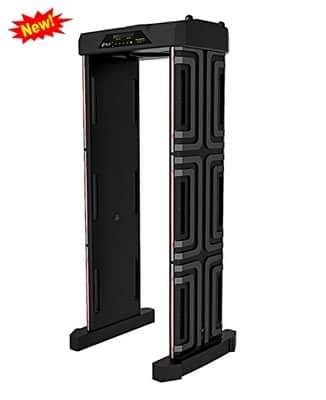

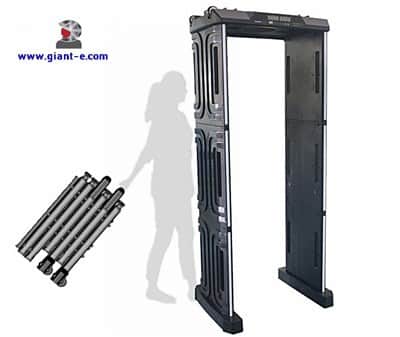

1. Portable metal detector
2. The device is equipped with power protection, built-in battery can works for 8 hours when continuous work, charging needs about 4 hours.
3. Real-time battery capacity and low power is showed with power indicator light on the LED light. The device could works for about 10 minutes when power indicator light flash continuously.
4.Program Self-diagnostic when power on, automatically checking left and right door panel, LED light and choose the best working frequency.
5. Adopt advanced digital signal processing control replaced traditional analog signal control, better stability.
6. Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
7. Sensitivity adjustable: Each zone has 355 degree sensitivity level, three patterns: High, middle, Low for different requirements. Preset the metal size, weight, volume, location to exclude the coin, key, belt.
8. Sound Alarm: 1-16 alarm time, 16 different sound volume for choose
9. LED light alarm: LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles
10. Automatically count passengers and alarm times
11. Password protection, only the authorized person can operate.
12. Anti-interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from 6.9K-11K to avoid frequency interference
13. Harmless to human body: is harmless with heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
Application
is designed for Airport, Customs, Railway station, Metro, Police, Court, Embassy, Commercial buildings, Military installations, Ships, Shipping Mall, Army, Prison, Government agency, Bank, Factory, Hotel, Entertainment environments, Gymnasiums, Exhibition Centers etc. Public security.
